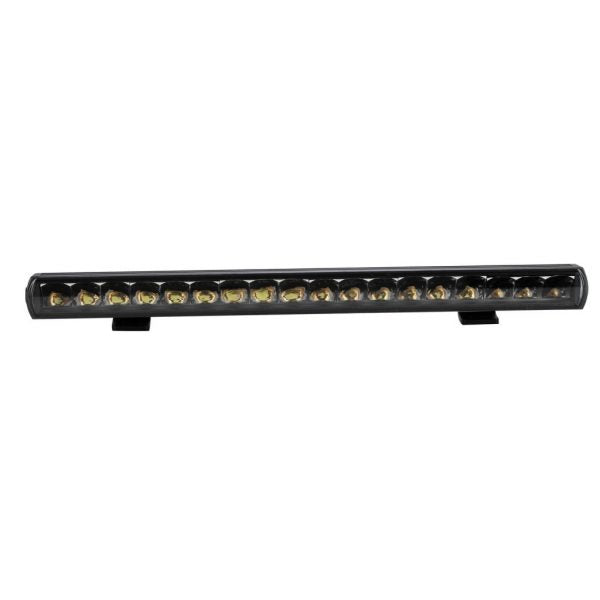

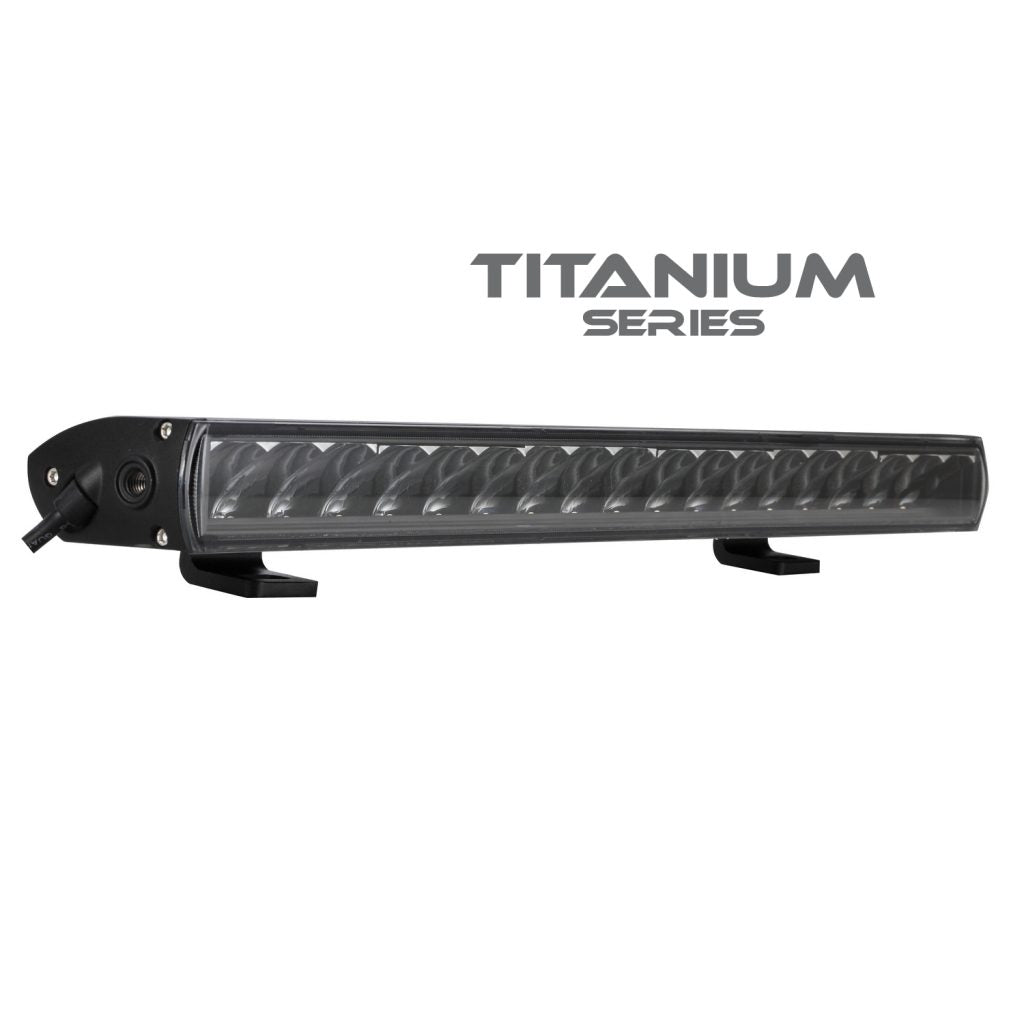

BRIGHT SOURCE – SINGLE ROW E-CODE TITANIUM LIGHT BAR 20?
Titanium Series 90W Single Row Driving Light 20?
Power: 90W 9-36V
IP Rate: IP68
LED: 18*5W LG
Colour Temp: 6500K
Lumens: 8100 Raw/ 6950 Effective
Comes with 2 types of mounts: Side (End) Bracket and Sliding Bottom Bracket
Electronic Thermal Protection
Over/Under Voltage Protection
Reverse Polarity Protection
UV Resistant, Shock Resistant
Centre Interconect Kit available to join lamps together
515mm x 38.5mm x 65mm / 20.2? x 2.1? x 2.7?
Driving Beam Pattern
50,000 hour LED Lifespan
Plug and Play harnesses for 1 or 2 lamps available separately
Street Legal everywhere in Canada except AB, MB and SK
5 Year Limited Warranty
What’s included: This is for one lamp
Two ways of mounting: All of our ‘E’ Marked lamps include both side and bottom mounts as shown in the images.
Harnesses and Interconnect kits available separately.
