CTS TURBO B8/B8.5 A4/A5/AllRoad 2.0T FMIC KIT (600HP)

The new CTS Turbo B8/B8.5 A4/A5-AllRoad FMIC kit  will enhance the performance and power of your vehicle substantially by maintaining lower charged air temperatures even under the most extreme abuse.  Boasting a high density bar and plate intercooler core (rated for 600HP) the CTS FMIC kit is ideal for modified B8/B8.5 A4/A5/AllRoad with K03, K04 or even big turbo applications.  Smooth transitions in our hand crafted intercooler piping ensure quick boost response and optimal flow while the aluminium piping ensures maximum heat dissipation.  Fitting an intercooler this size is no easy task, but our design requires absolutely no trimming to the bumper or bumper reinforcement, some trimming to the plastic surround is needed. Product details:

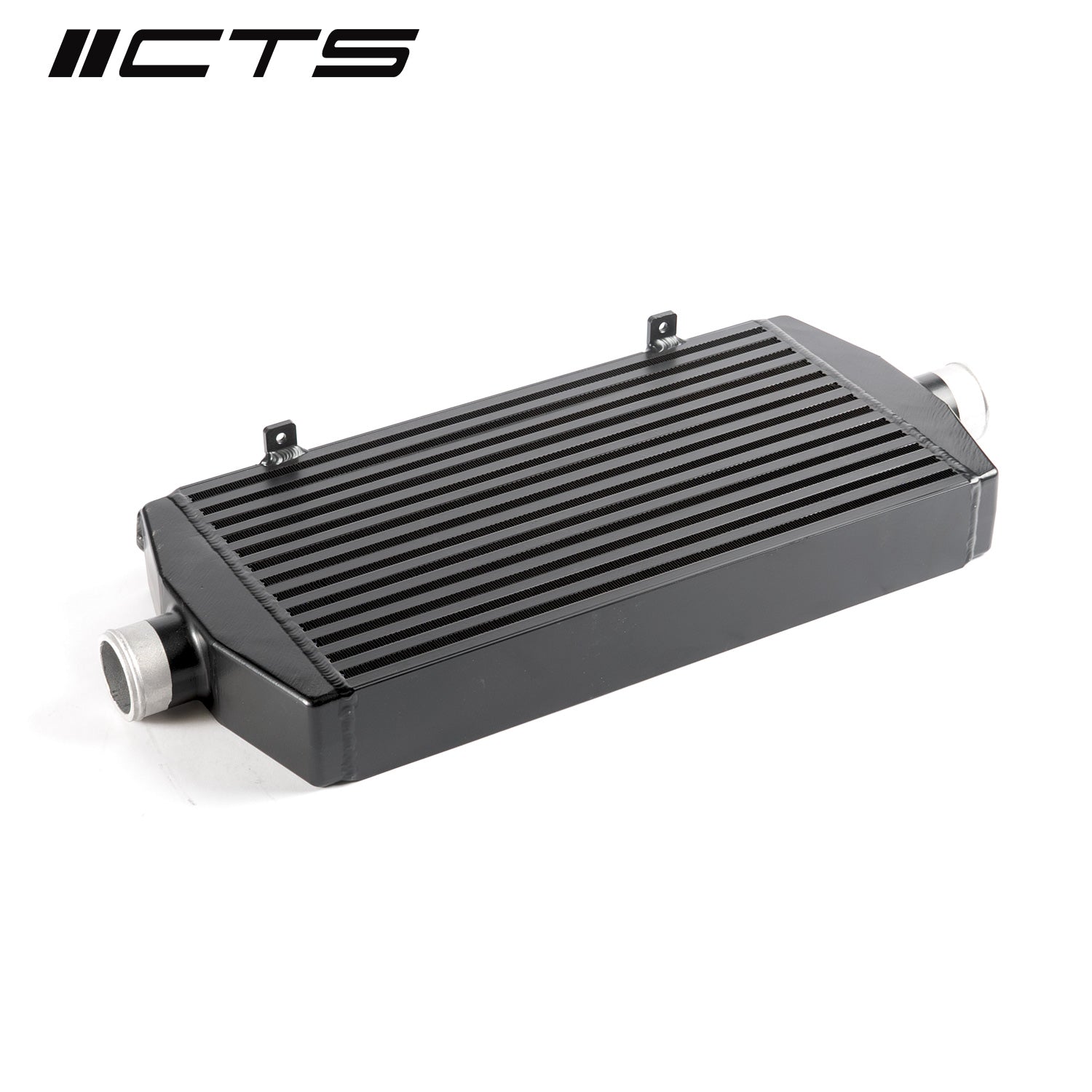

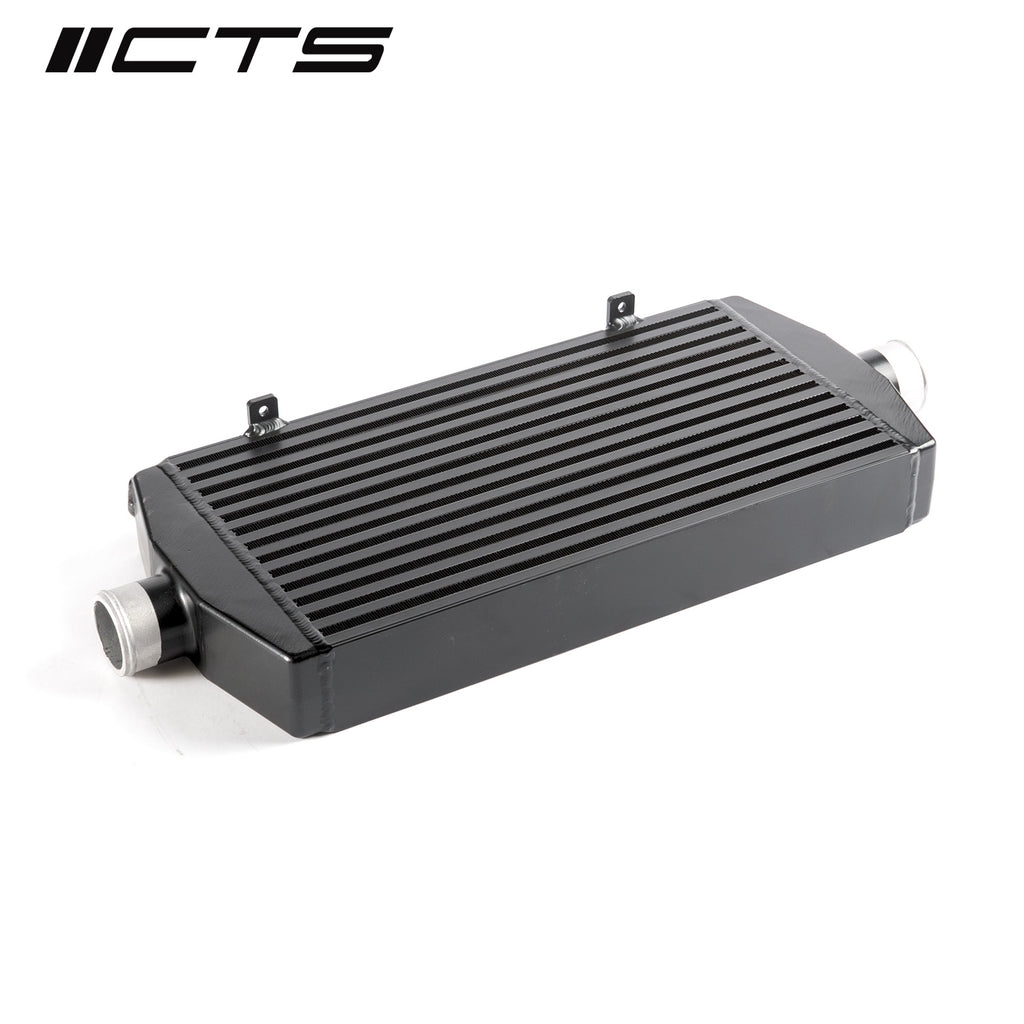

• High density bar and plate intercooler core
• Core dimensions 20" x 11.25" x 3"
• 2.5" hand fabricated, powdercoated aluminium piping
• Stainless steel T-bolt clamps and 4 ply silicon connectors
• Bead rolled pipe ends to prevent hoses popping off

Fitment:

• AUDI  A4 2009-2015 (B8 - B8.5) 2.0T engine EA888.2
• AUDI A5 2008-2015 (B8 - B8.5) 2.0T engine EA888.2
• AUDI Allroad 2009-2015 (B8 - B8.5) 2.0T engine EA888.2

NOTE: Does not fit late B8.5 with EA888.3 Gen3 2.0T engine
